6649970194 Timing chain kit SsangYong 2.0 D20DT Actyon, Kyron, Rexton

Description 6649970194 Timing chain kit SsangYong 2.0 D20DT Actyon, Kyron, Rexton

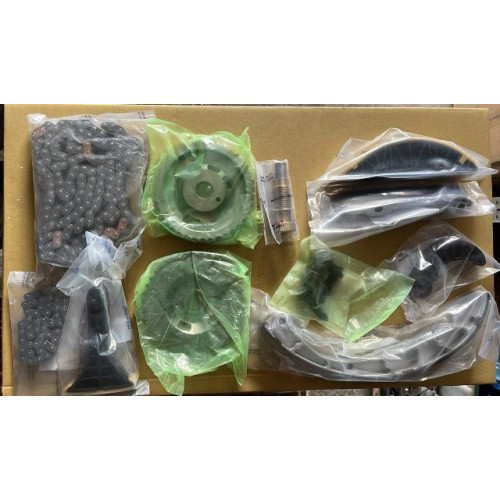

SsangYong Timing Chain Kit for 2.0 D20DT Actyon, Kyron, Rexton and other diesel engines.

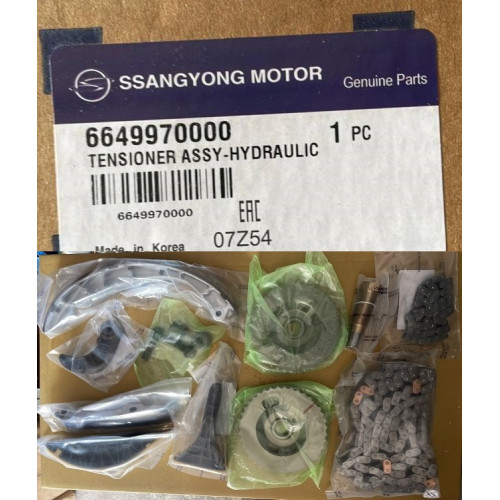

Original timing chain kit with code 6649970000

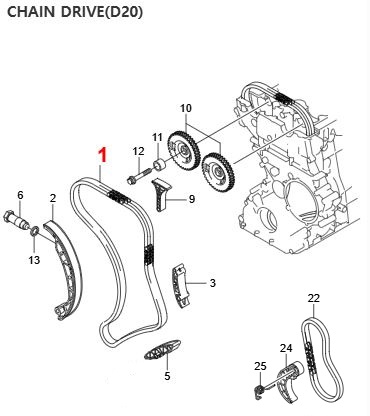

The timing kit Ssang Yongincludes the maximum number of timing components (the number corresponds to the part number on the diagram):

1. Timing chain SsangYong 6649970194
2. Timing chain tensioner shoe SsangYong 6650502416
3. Timing chain middle damper SsangYong 6640501116
5. Timing chain lower damper SsangYong 6640502316 (6640501316, 6640502416)
6. Timing chain tensioner SsangYong 6640500111 (6640500011)
9. Timing chain upper damper SsangYong 6650500516
10. Camshaft gear SsangYong 6650520301 (2 pcs.)
11. SsangYong camshaft gear washer (bush) 6659900040 (2 pcs.)
12. Camshaft gear bolt SsangYong 6650510071 (2 pcs.)
13. Timing chain tensioner O-ring SsangYong 007603022100
22. Oil pump chain SsangYong 6659970194
24. Oil pump chain tensioner SsangYong 6641810159
25. Oil pump chain tensioner spring SsangYong 6649930120
